Welcome to vpf-730’s documentation!#

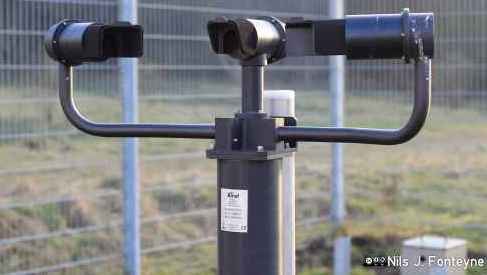

The vpf-730 package allows communication with the Biral VPF-730 Present weather sensor. The package implements a logger allowing to continuously log data from the sensor and store it in a local database and a sender allowing to send data to a remote server via http requests.

_images/pws.jpg

Quickstart#

Installation#

To install vpf-730, open an interactive shell and run

pip install vpf-730

You can also install the sentry SDK for error monitoring

pip install vpf-730[sentry]

Using vpf-730#

vpf-730 can be used as a standalone CLI tool with limited configuration and features or as a library to build your own tool. The tool consists of two parts. A logger for communicating and logging the sensor data and a sender for sending the data to a remote server.

  • When using the logger as a CLI tool see Configuration for detailed usage. Get started with:

    vpf-730 logger --serial-port /dev/ttyS0

  • When using the sender as a CLI tool see Configuration for detailed usage. Get started with:

    VPF730_API_KEY=deadbeef vpf-730 sender \
--get-endpoint "https://api.example/com/vpf-730/status" \
--post-endpoint "https://api.example/com/vpf-730/data"

  • When using the comm interface to manually send ASCII commands to the Sensor. Information about the available commands can be found in the Biral VPF-730 Manual starting on page 56. Get started with a remote self-test and monitoring message R?:

    vpf-730 comm --serial-port /dev/ttyUSB0 R?

  • When building your own tooling see Package for detailed examples. Get started with:

      from vpf_730 import VPF730

  vpf730 = VPF730(port='/dev/ttyS1')
  print(vpf730.measure())
